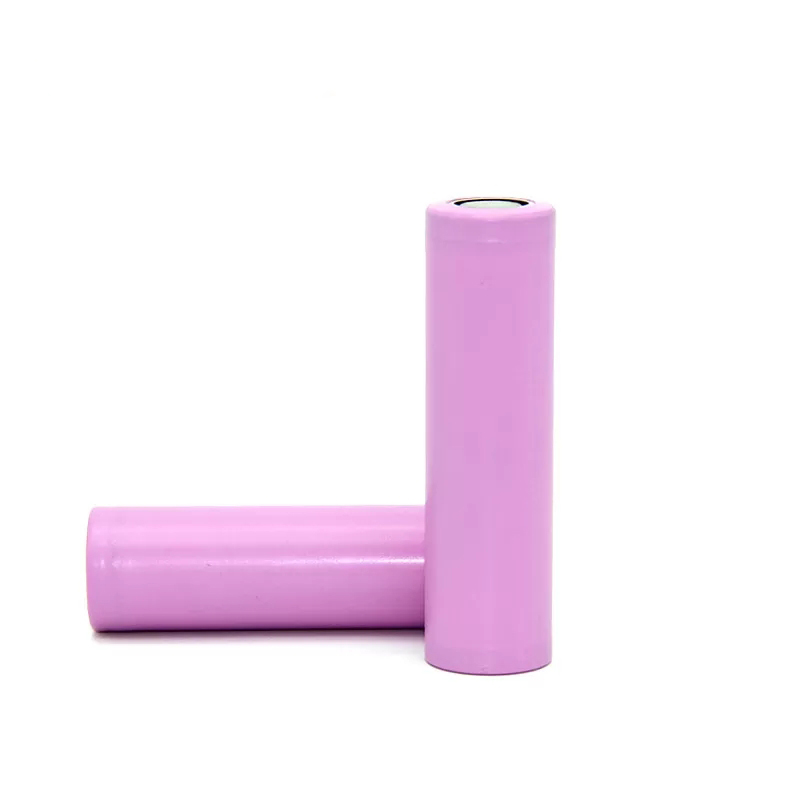

YX-18650-22L

Part number	YX-18650-22L
Product classification	184
Manufacturer
Description	Place of Origin: China Certification: CE/UN38.3
Encapsulation	-
Quantity	1000
RoHS status	YES
Share
Price	$

IN STOCK: 1000

Total number

Quantity

Price

Total price

Obtain quotation information

Product parameters

Model No.:	YX18650-22L	Cycle Life:	500 Cycles
Min Capacity:	2150mAh @0.2C	Operating Temperature:	-20°C To 60°C
Weight:	42±1.5g	Voltage:	3.7V
High Light:	High Discharge Lithium Battery 3.7V, EV 18650 Rechargeable Lithium Battery, EV High Discharge Lithium Battery

Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
*Broad operating temperature range.

No.	Item	Specifications
1	Model No.	YX18650-22L
2	Typical Capacity	2200mAh @0.2C Discharge
3	Min capacity	2150mAh @0.2C
4	Nominal voltage	3.6V
5	Standard Charge	CC/CV,0.5C,4.20V
6	Standard Discharge	CC,02C,2.5V
7	Cut-off charge Voltage	4.20V±0.05V
8	Cut-off charge Current	0.02C(At CVmode)
9	Cut-off discharge Voltage	2.5V
10	Charging Time	3hours(standard charge)
11	Quick Charge Current	2200mA(1C)
12	Quick Discharge Current	1100mA(0.5C)
13	Max Discharge Current	2200mA (1C)
14	Initial Impedance	≤60mΩ
15	Weight	42±1.5g
16	Operating temperature	Charging: 0℃~45℃ Discharging:-40℃~60℃
17	Storage temperature	-20℃~45℃
18	Storage Humidity	≤75%RH
19	Standard environmental condition	Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA
