YX18650-GC01

  • YX18650-GC01
  • YX18650-GC01
  • NMC Battery>YX18650-GC01
  • NMC Battery>YX18650-GC01
Part number YX18650-GC01
Product classification 176
Manufacturer
Description -
Encapsulation -
Quantity 1000
RoHS status YES
Share
Price $
IN STOCK: 1000
Total number

Quantity

Price

Total price

Obtain quotation information
Product parameters
Application: Power Tools, Electric Vehicles, Medical Equipment, Etc.
Charge Temperature: 0℃~45℃ Cycle Life: >400 Times
Discharge Temperature: -20℃~60℃ Protection: Over-charge, Over-discharge, Over-current, Short-circuit

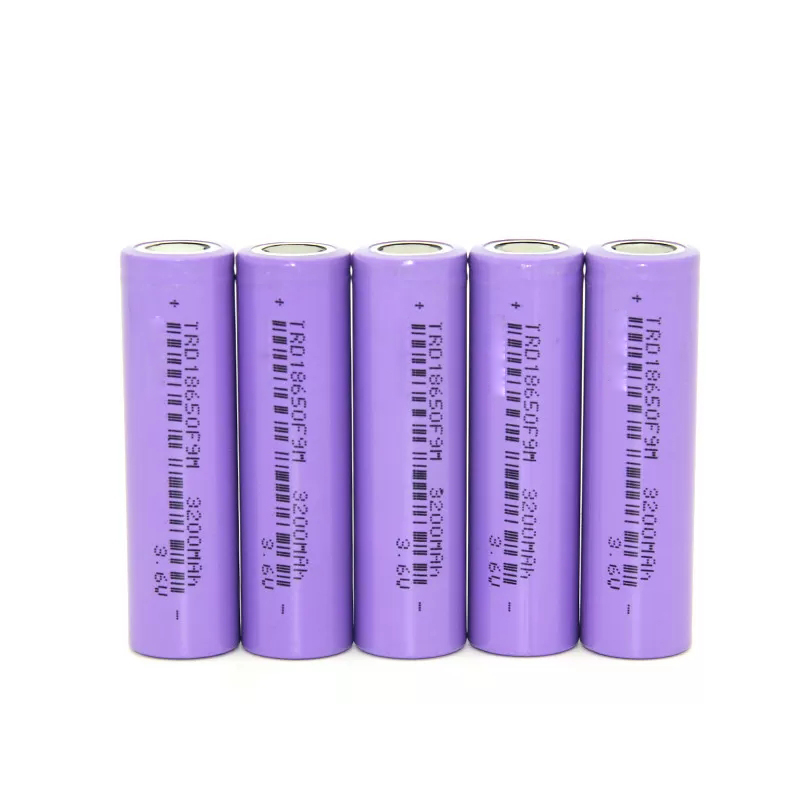

Name: 18650 3.6V 3200mAh Lithium Battery Cell
High Light:

Lightweight 18650 Lithium Battery Cell, Lightweight 3.6V Lithium Battery, Compact 18650 Lithium Battery Cell

18650 Lithium battery cells power tools electric vehicles medical equipment 3200mAh Ultra-long cycle life

Key Specifications/Special Features:
• 3.6V 3200mAh 18650 lithium battery with 3C discharge

• Light weight & compact
• Environment friendly



Item Specifications
Model No. YX-18650GC01
Typical Capacity 3200mAh @0.2C Discharge
Min capacity 3100mAh @0.2C
Nominal voltage 3.6V
Standard Charge CC/CV,0.2C,4.20V
Standard Discharge CC,02C,2.5V
Cut-off charge Voltage 4.20V±0.05V
Cut-off charge Current 0.(02C(AtCVmode)
Cut-off discharge Voltage 2.5V
Charging Time 8.0hours(standard charge)
Quick Charge Current 1600mA(0.5C)
Quick Discharge Current 3200mA(1C)
Max Discharge Current 9600mA(3C)
Initial Impedance ≤40mΩ
Weight Approx:47.0g
Operating temperature Charging:0℃~45℃
Discharging:-20℃~50℃
Storage temperature 5℃~35℃
Storage Humidity ≤75%RH
Standard environmental condition Temperature:25±2℃
Humidity:45-75%RH
Atmospheric Pressure:86-106KPA

Place of Origin: China Certification: CE/UN38.3
Place of Origin: China Certification: CE/UN38.3
